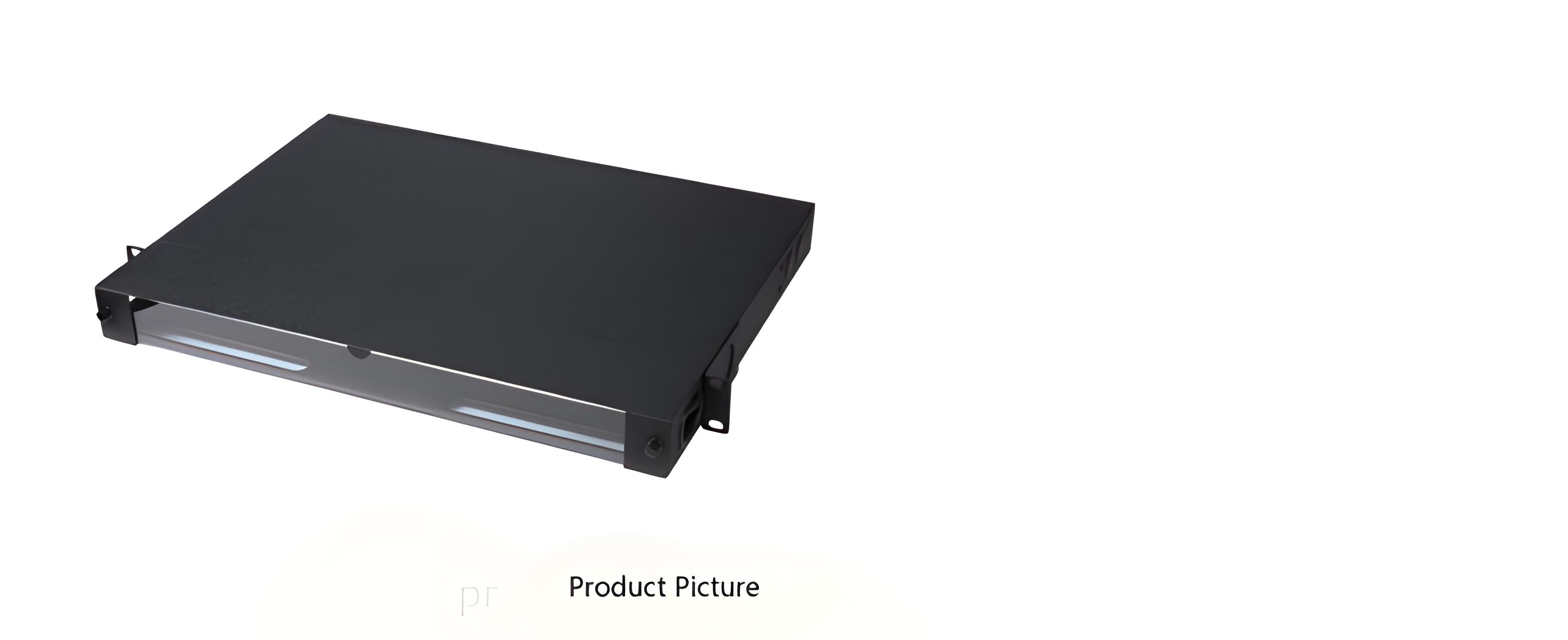

MPO FIBER OPTICAL PATCH PANEL FPM01-4-A

Product description
Technical specification
Order information
E-catalog download

MPO fiber optical patch panel is suitable for Data center fiber backbone connection and management in MDA, IDA or HDA . It can be installed on 19" rack or cabinet for MPO switch modular or front MPO adapter panel.

1U MPO patch panel fit for 4pcs MPO Cassette Module, it can manage

max 96 core for LC adapter(duplex), max 48 core for SC adapter(simplex),

or max 288 core for MPO adapter.
2U MPO patch panel fit for 8pcs MPO MPO Cassette Module, it can

manage max 192 core for LC adapter(duplex), max 96 core for SC

adapter(simplex), or max 576 core for MPO adapter.
U MPO patch panel fit for 12pcs MPO MPO Cassette Module, it can

manage max 288 core for LC adapter(duplex), max 144 core for SC

adapter(simplex), or max 864 core for MPO adapter.
采用优质冷轧钢板制作
板材通过严格的脱脂、酸洗、防锈磷化、纯水清洗后，再进行静电喷塑 , 喷塑厚度为 80μm-100μm，符合欧洲 ROHS 环保标准
Using cold-rolled steel sheet as raw material.
Surface finish:degreasing,pickling,phosphoric,water cleaning,electro-static

powder coating. The thickness of powder coating is 80μm-100μm, meet

ROHS standard.
1U, 2U,4U cable management are available.
Including cable management and tags.
Convenient installation and management.
The density is four times than a traditional fused fiber to save space of

cabinet and create extra value.

Using separated modulars for convenient maintain.

Part number	Product name	Description	Standard color	Inner box	Carton	Carton weight
FPM01-4-A	1U MOP patch panel	Without MPO Cassette Module and adapter	black	1PCS	5PCS	/
FPM02-8-A	2U MOP patch panel	Without MPO Cassette Module and adapter	black	1PCS	2PCS	/
FPM04-12-A	4U MOP patch panel	Without MPO Cassette Module and adapter	black	1PCS	1PCS	/
