Complied with the standard TIA-568C.3-2008 and YD/T1272.5-2009, it was widely used in the pre-terminated system of the IDC and blocks. This system applies to the 10G Ethernet transmissions and it is also available to the updated system for 40G/100G in the future.
- Ready equipped MPO and LC connectors
- technical tensile and resilient design for 400N and 100N/CM
- Special test for all the ports of the trunk cable makes higher reliability
- Low loss MPO connector and LC adapter on two sides
- Easily updated to the next generation for 40G and 100G
-

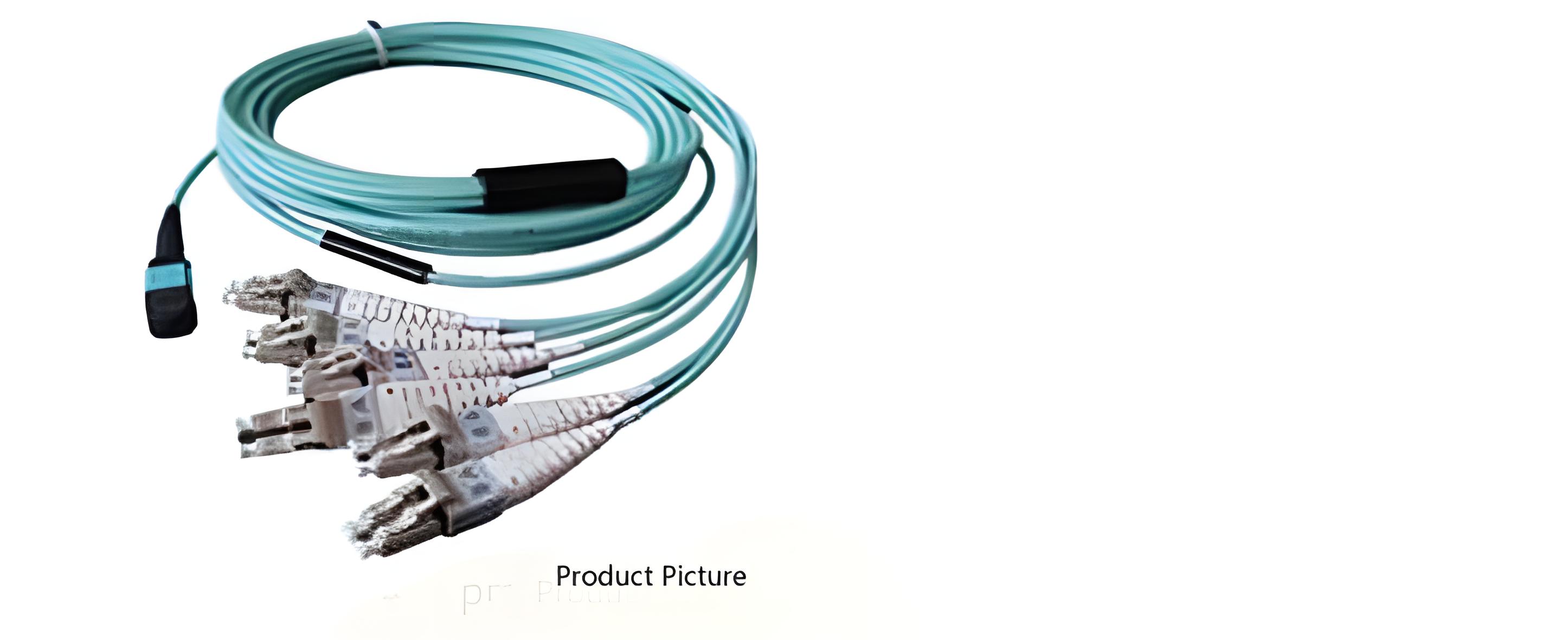

12 cores patch cords, OM3,OM4 and OS2 fiber optic cable, length inmeters. Outside coatings can be OFNR, OFNP and LSZH, etc.
- Faster equip
- High density in the wiring panels
- Easy cabling management in the most intensive SAN switch application
- customized length
- horizontal and regional cabling
- -20 C~+75 C
- Connected to MPO adapters and LC ports
- Different options for OM3,OM4 and 9/125 single mode
TRANSMISSION PERFORMANCE
| Part number | OM3 50/125um(850/1300nm) | OM4 50/125um(850/1300nm) | OS2 9/125um(1310/1550um) |
| MAX Attenuation (dB/KM) | 2.5 / 0.7 | 2.5 / 0.7 | 0.36/ 0.22 |
| MIN EMB bandwidth( MHz.KM) | 2000/- | 4700/- | / |
|
A t t e n u a t i o n v a r i a t i o n , 7 . 5 m m
radius,250um coated fiber,850nm
|
< 0.2dB | < 0.2dB | / |
|
A t t e n u a t i o n v a r i a t i o n , 7 . 5 m m
radius,250um coated fiber,1550nm
|
/ | / | < 0.2dB |
TECHNICAL PARAMETER
| Connector performance | Insertion loss(average) | Insertion loss (max) | Return loss |
| MPO low loss(Multimode) | 0.10dB | 0.30dB | N/A |
| MPO standard loss(Multimode) | 0.20dB | 0.50dB | N/A |
| LC or SC (Multimode) | 0.08dB | 0.15dB | N/A |
| MPO low loss(single mode) | 0.20dB | 0.75dB | >60dB |
| MPO standard loss(single mode) | 0.20dB | 0.75dB | >60dB |
| LC or SC (single mode) | 0.10dB | 0.20dB | >55dB |
| Part Number | Description | Package |
| FAM65-12-OM3-* | 12cores multi mode MPO-LC Fiber patch cord | 1PCS |
| FAM65-12-OM4-* | 12cores multi mode MPO-LC Fiber patch cord | 1PCS |
| FAS65-12-OS2-* | 12cores Single mode MPO-LC Fiber patch cord | 1PCS |
| FAM65-24-OM3-* | 24cores multi mode MPO-LC Fiber patch cord | 1PCS |
| FAM65-24-OM4-* | 24cores multi mode MPO-LC Fiber patch cord | 1PCS |
| FAS65-24-OS2-* | 24cores Single mode MPO-LC Fiber patch cord | 1PCS |
