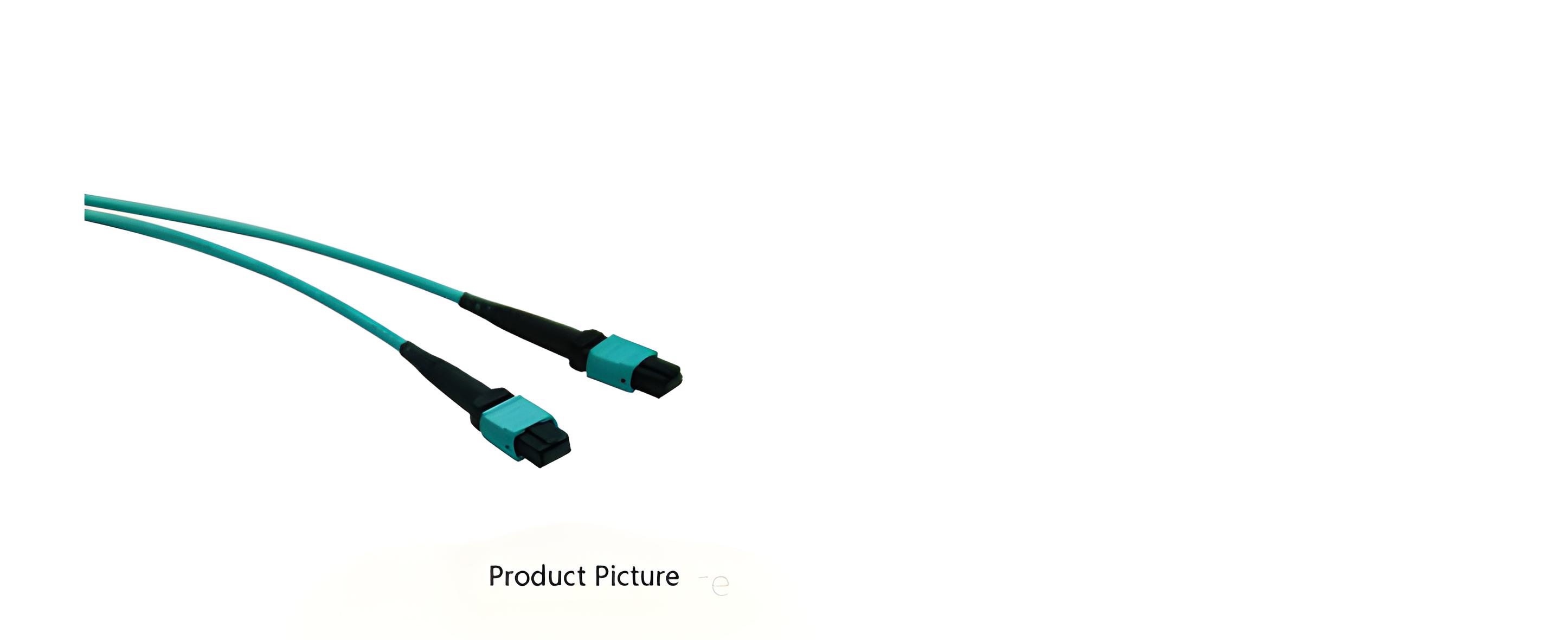

Complied with the standard TIA-568C.3-2008 and YD/T1272.5-2009, it was widely used in the pre-terminated system of the IDC and blocks. This system applies to the 10G Ethernet transmissions and it is also available to the updated system for 40G/100G in the future. MPO trunk cable helps to fast installation for Data Center and other Fiber Optic environment. Its efficient plug and play structure which can significantly lower the installation and daily maintenance costs surpasses MDA, HDA and EDA regional module cassette or fan-out fiber connections. The high quality fiber optic cable and MPO accessories makes up the BEITENUO MPO Trunk cable and provides lower insertion loss and higher return loss so that it fully complied to the high speed network system.
-
Ready equipped MPO connectors and technical tensile and resilient designfor 400N and 100N/CM
- Special test for all the ports of the trunk cable makes higher reliability
- Low loss MPO connectors on both two sides
- Easily updated to the next generation for 40G and 100G
-
12 to 144 cores, OM3,OM4 and OS2 fiber optic cable, length in meters.Outside coatings can be OFNR, OFNP and LSZH, etc.
- Polarity A,B or C
-
Circle, small outside diameter structure for easily preservation and cable laying.
- Faster equip
- Trunk cabling
- Pre-terminated module or MPO adapters connected
-
Protective sleeves for water proofing, dust prevention, resilient and tensile resistance
- -20 C~+75 C
-
OFNR can pass through UL-1666 flaming test. OFNR can get through UL-910 flaming test, LSZH meets IEC60332-1 and IEC60332-3 standard
-
MPO connectors color. multi mode standard loss: beige multi mode lowloss : aqua single mode standard loss: green single mode low loss:yellow
TRANSMISSION PERFORMANCE
| Part number | OM3 50/125um(850/1300nm) | OM4 50/125um(850/1300nm) | OS2 9/125um(1310/1550um) |
| MAX Attenuation (dB/KM) | 2.5 / 0.7 | 2.5 / 0.7 | 0.36/ 0.22 |
| MIN EMB bandwidth( MHz.KM) | 2000/- | 4700/- | / |
|
A t t e n u a t i o n v a r i a t i o n , 7 . 5 m m
radius,250um coated fiber,850nm
|
< 0.2dB | < 0.2dB | / |
|
A t t e n u a t i o n v a r i a t i o n , 7 . 5 m m
radius,250umcoated fiber,1550nm
|
/ | / | < 0.2dB |
TECHNICAL PARAMETER
| Connector performance | Insertion loss(average) | Insertion loss (max) | Return loss |
| MPO low loss(Multimode) | 0.10dB | 0.30dB | N/A |
| MPO standard loss(Multimode) | 0.20dB | 0.50dB | N/A |
| MPO low loss(single mode) | 0.10dB | 0.35dB | >60dB |
| MPO standard loss(single mode) | 0.20dB | 0.75dB | >60dB |
SPECIFICATIONS
| cores | OD(mm) | MIN bending radius(dynamic)mm | MIN bending radius(static)mm | MAX install tension | Short term resilience |
| 12 | 4.5 | 45 | 22 | 450 | 100 |
| 24 | 8 | 80 | 40 | 600 | 100 |
| 48 | / | 80 | 40 | 600 | 100 |
| 72 | / | 100 | 50 | 600 | 100 |
| 96 | / | 100 | 50 | 600 | 100 |
| 114 | / | 100 | 50 | 600 | 100 |
| Part Number | Description | Package |
| FAM66-12-OM3-* | 12cores Multi mode MPO-MPO trunk cable | 1PCS |
| FAM66-12-OM4-* | 12cores Multi mode MPO-MPO trunk cable | 1PCS |
| FAS66-12-OS2-* | 12cores Single mode MPO-MPO trunk cable | 1PCS |
| FAM66-24-OM3-* | 24cores Multi mode MPO-MPO trunk cable | 1PCS |
| FAM66-24-OM4-* | 24cores Multi mode MPO-MPO trunk cable | 1PCS |
| FAS66-24-OS2-* | 24cores Single mode MPO-MPO trunk cable | 1PCS |
