- Materials: 1.2mm cool rolled steel.
- Color: black/gray.
- Features: light in weight, uniform distribution thermal via.
- Surface finish: Degreasing, phosphoric, water cleaning, electro-static powder coating
- Installing: fixed by square nuts.
- Installing position: level fixed on the mounting rail or cabinet.
- Applications: setting hosts, monitor or other terminal/ ancillary.
- equipment. Supporting 600 width cabinets.
- Features: adjustable mounting distance.
- Materials: 1.2mm cool rolled steel.
- Color: black/gray.
- Features: light in weight, uniform distribution thermal via.
- Surface finish: Degreasing, phosphoric, water cleaning, electro-static powder coating
- Installing: fixed by square nuts.
- Installing position: level fixed on the mounting rail or cabinet.
- Applications: setting hosts, monitor or other terminal/ ancillary.
- equipment. Supporting 600 width cabinets.
- Features: adjustable mounting distance.
|

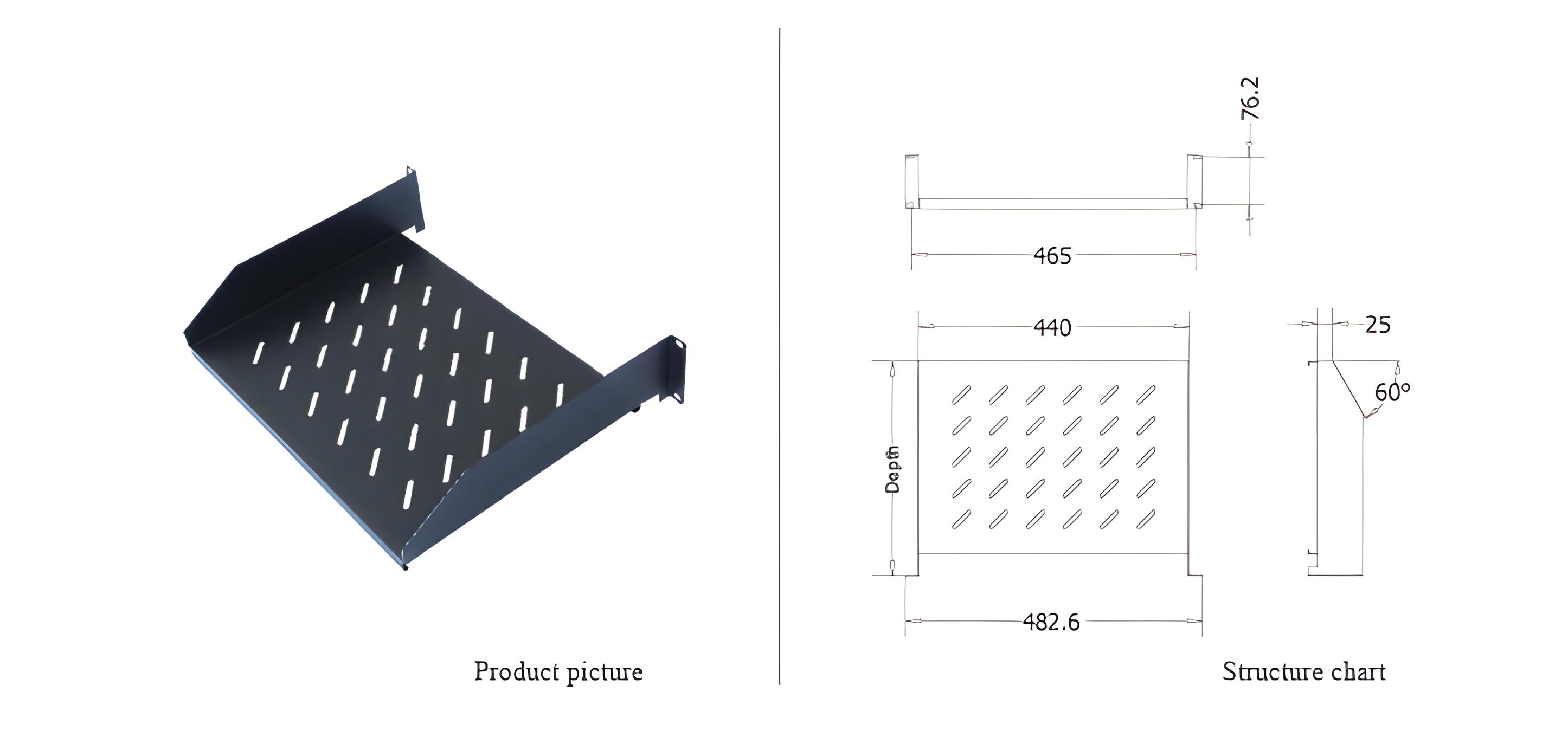

Part number |
Description |
Depth 1/mm |
Depth 2/mm |
Applications |
|
CFF60-* |
Cantilever slab-60 |
300.5 |
--- |
19’, 600mm deep cabinet |
|
CFF80-* |
Cantilever slab-80 |
425.5 |
--- |
19’, 800mm deep cabinet |
|
CFF90-* |
Cantilever slab-90 |
402.1 |
--- |
19’, 900mm deep cabinet |
|
CFF100-* |
Cantilever slab-100 |
452.9 |
--- |
19’, 1000mm deep cabinet |
* = Colors A= Black(RAL9004) B=Gray(RAL7044)
