- Materials: 1.2mm cool rolled steel.
- Color: black/gray.
- Features: adjustable mounting distance.
- Surface finish: Degreasing, phosphoric, water cleaning, electro-static powder coating.
- Installing: fixed by square nuts.
- Installing position: level fixed on the mounting rail.
- Applications: setting equipments requiring frequent operation.
- Remarks: Wide sliding shelf for 800mm deep cabinet. Others for 600mm cabinet.
- Materials: 1.2mm cool rolled steel.
- Color: black/gray.
- Features: adjustable mounting distance.
- Surface finish: Degreasing, phosphoric, water cleaning, electro-static powder coating.
- Installing: fixed by square nuts.
- Installing position: level fixed on the mounting rail.
- Applications: setting equipments requiring frequent operation.
- Remarks: Wide sliding shelf for 800mm deep cabinet. Others for 600mm cabinet.
|

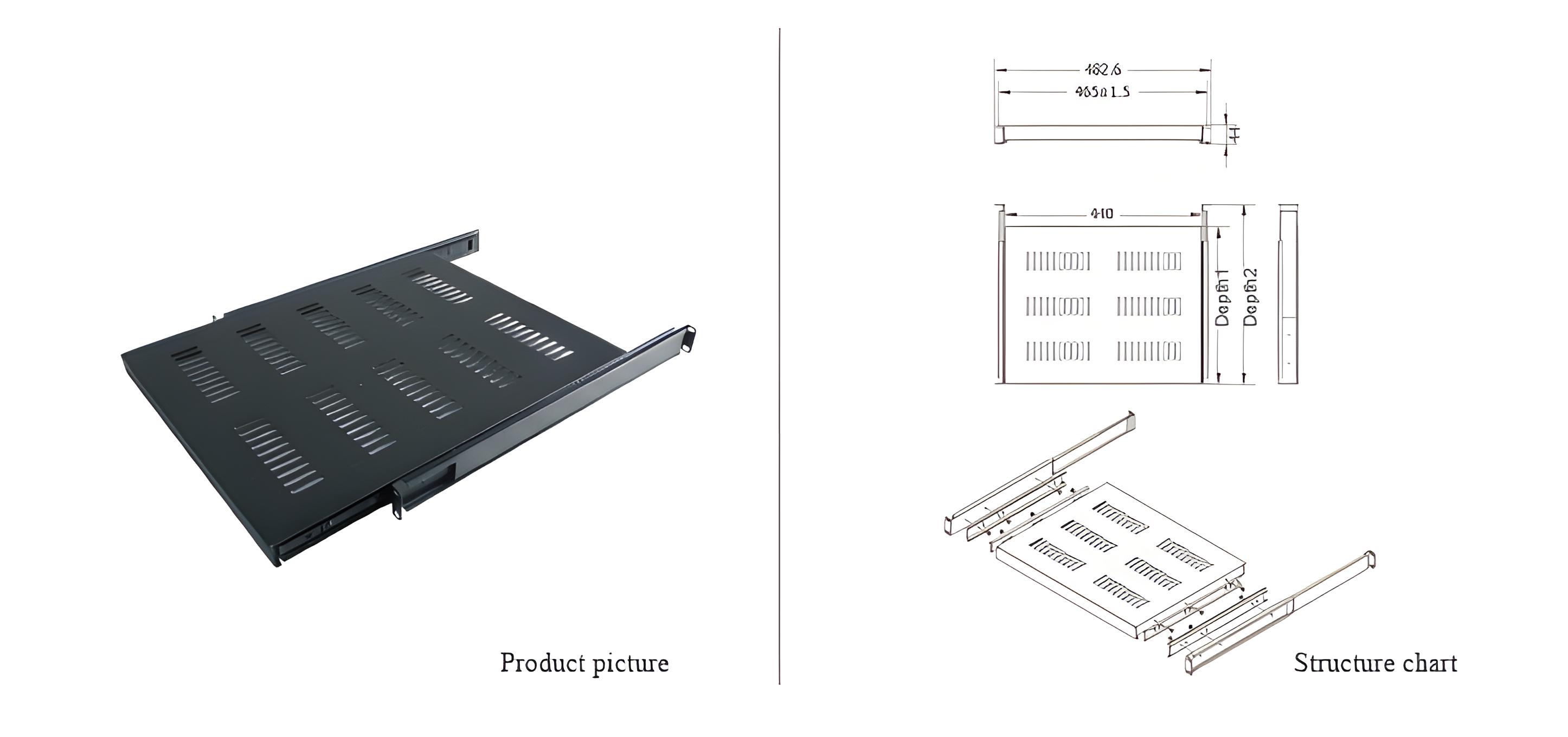

Part number |
Description |
Depth 1/mm |
Depth 2/mm |
Applications |
|
CFD60-* |
Sliding shelf-60 |
350 |
380 |
19’, 600mm deep cabinet |
|
CFD80-* |
Sliding shelf-80 |
550 |
530 |
19’,800mm deep cabinet |
|
CFD90-* |
Sliding shelf-90 |
650 |
630 |
19’, 900mm deep cabinet |
|
CFD100-* |
Sliding shelf-100 |
750 |
730 |
19’, 1000mm deep cabine |
|
CFD110-* |
Sliding shelf-110 |
850 |
830 |
19’, 1100mm deep cabinett |
* = Colors A= Black(RAL9004) B=Gray(RAL7044)
