- Materials: 1.2mm cool rolled steel.
- Color: black/gray.
- Features: adjustable mounting distance.
- Surface finish: Degreasing, phosphoric, water cleaning, electro-staticpowder coating.
- Installing: fixed by square nuts.
- Installing position: level fixed on the mounting rail.
- Applications: setting hosts, monitor or other terminal/ ancillary equipment. Supporting 600 width cabinets.
- Materials: 1.2mm cool rolled steel.
- Color: black/gray.
- Features: adjustable mounting distance.
- Surface finish: Degreasing, phosphoric, water cleaning, electro-staticpowder coating.
- Installing: fixed by square nuts.
- Installing position: level fixed on the mounting rail.
- Applications: setting hosts, monitor or other terminal/ ancillary equipment. Supporting 600 width cabinets.
|

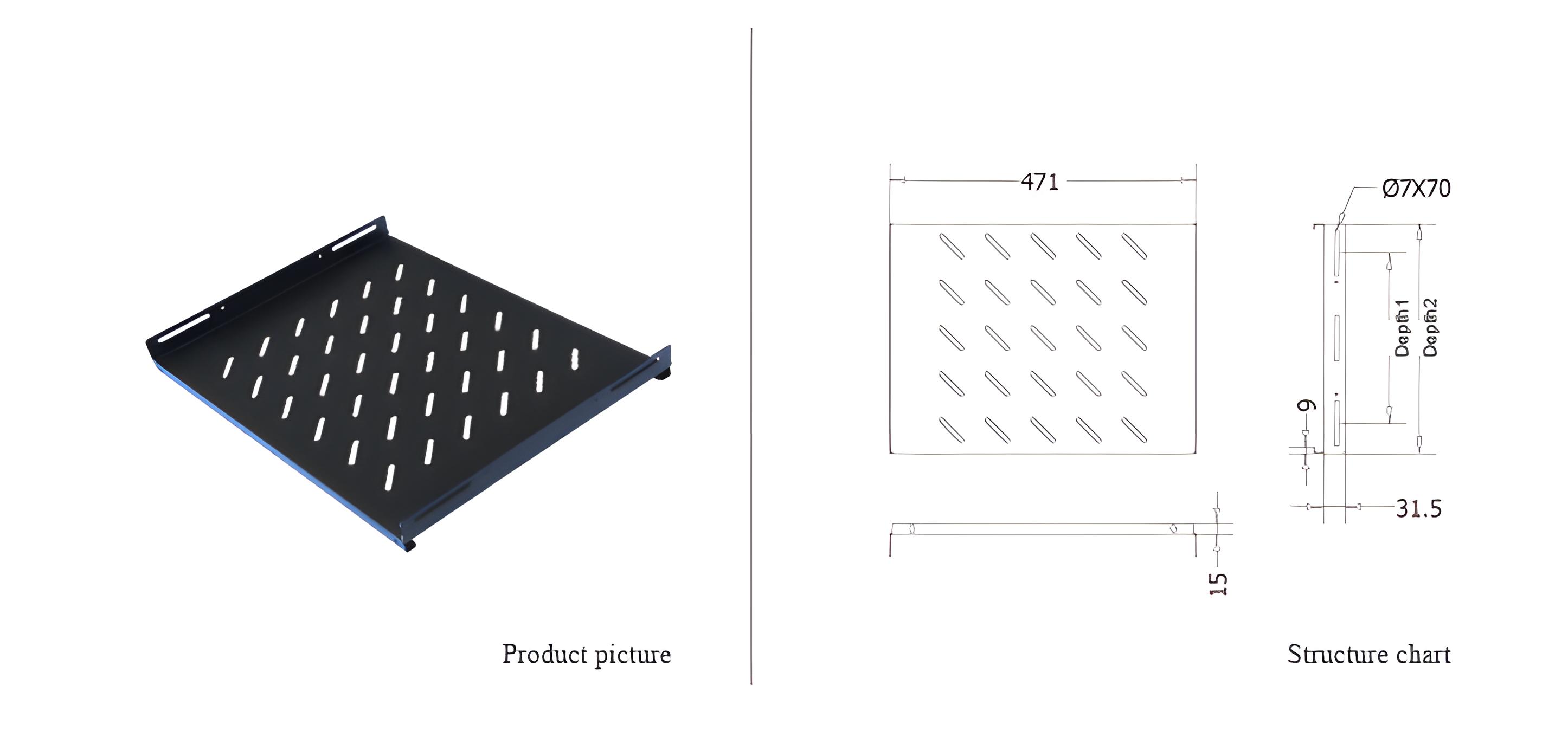

Part number |
Description |
Depth 1/mm |
Depth 2/mm |
Applications |
|
CFB45-1.2-* |
Fixed shelf -45 |
275 |
184.8 |
19’, 450mm deep cabinet |
|
CFB60-1.2-* |
Fixed shelf -60 |
350 |
260 |
19’, 600mm deep cabinet |
|
CFB80-1.2-* |
Fixed shelf -80 |
550 |
460 |
19’, 800mm deep cabinet |
|
CFB90-1.2-* |
Fixed shelf -90 |
650 |
560 |
19’, 900mm deep cabinet |
|
CFB100-1.2-* |
Fixed shelf -100 |
750 |
660 |
19’, 1000mm deep cabinet |
|
CFB45-1.5-* |
Fixed shelf -45 |
275 |
184.8 |
19’, 450mm deep cabinet |
|
CFB60-1.5-* |
Fixed shelf -60 |
350 |
260 |
19’, 600mm deep cabinet |
|
CFB80-1.5-* |
Fixed shelf -80 |
550 |
460 |
19’, 800mm deep cabinet |
|
CFB90-1.5-* |
Fixed shelf -90 |
650 |
560 |
19’, 900mm deep cabinet |
|
CFB100-1.5-* |
Fixed shelf -100 |
750 |
660 |
19’, 1000mm deep cabinet |
* = Colors A= Black(RAL9004) B=Gray(RAL7044)
