- Materials: 1.2mm cool rolled steel.
- Color: black/gray.
- Features: adjustable mounting distance.
- Surface finish: Degreasing, phosphoric, water cleaning, electro-static powder coating.
- Installing: fixed by square nuts.
- Installing position: level fixed on the mounting rail.
- Applications: setting standard 19’ equipment.
- Materials: 1.2mm cool rolled steel.
- Color: black/gray.
- Features: adjustable mounting distance.
- Surface finish: Degreasing, phosphoric, water cleaning, electro-static powder coating.
- Installing: fixed by square nuts.
- Installing position: level fixed on the mounting rail.
- Applications: setting standard 19’ equipment.
|

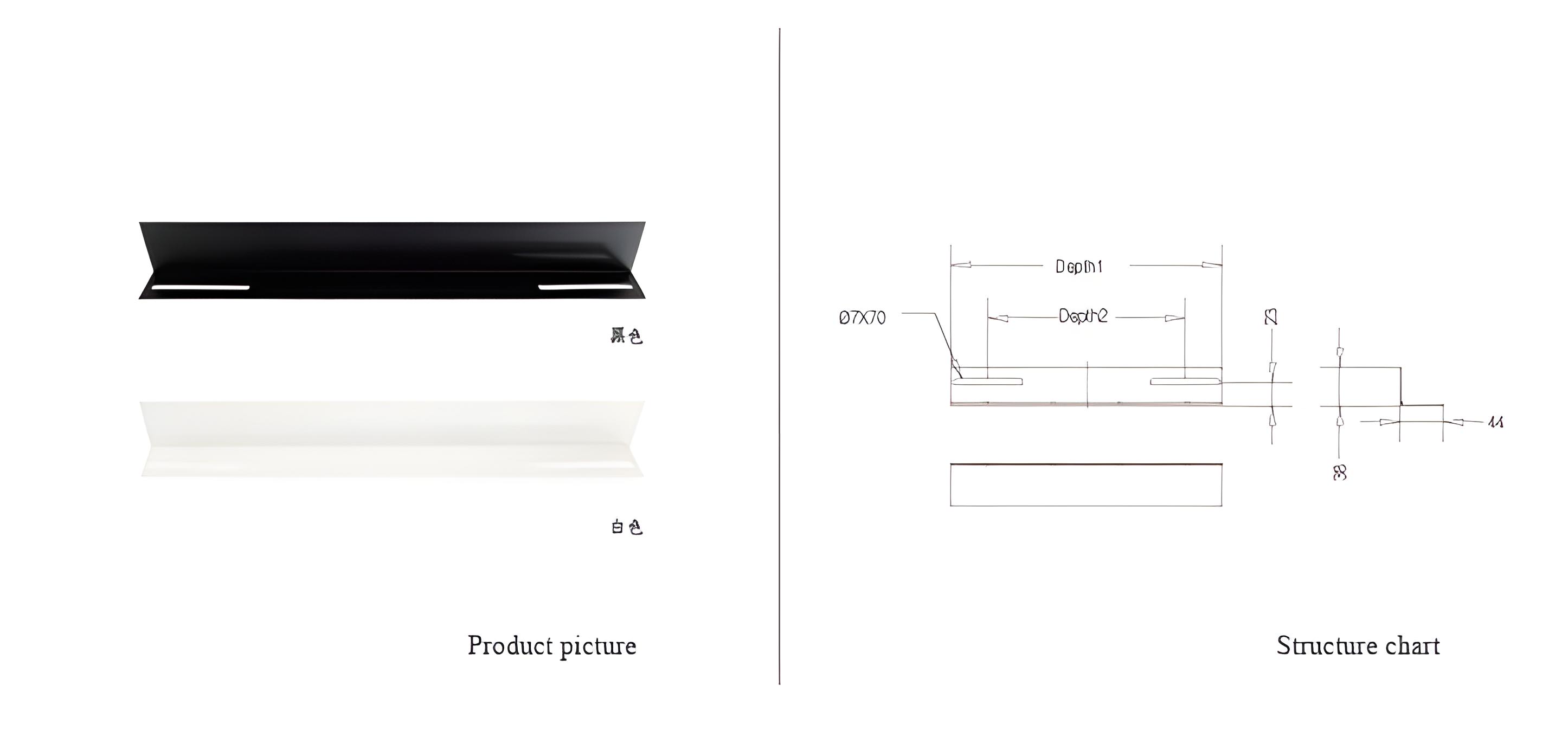

Part number |
Description |
Depth 1/mm |
Depth 2/mm |
Applications |
|
CFA45-1.2-* |
L rail-45 |
275.5 |
200 |
19’, 450mm deep cabinet |
|
CFA60-1.2-* |
L rail-60 |
425.5 |
350 |
19’, 600mm deep cabinet |
|
CFA80-1.2-* |
L rail-80 |
625.5 |
550 |
19’, 800mm deep cabinet |
|
CFA90-1.2-* |
L rail-90 |
725.5 |
650 |
19’, 900mm deep cabinet |
|
CFA100-1.2-* |
L rail-100 |
825.5 |
750 |
19’, 1000mm deep cabinet |
* = Colors A= Black(RAL9004) B=Gray(RAL7044)
