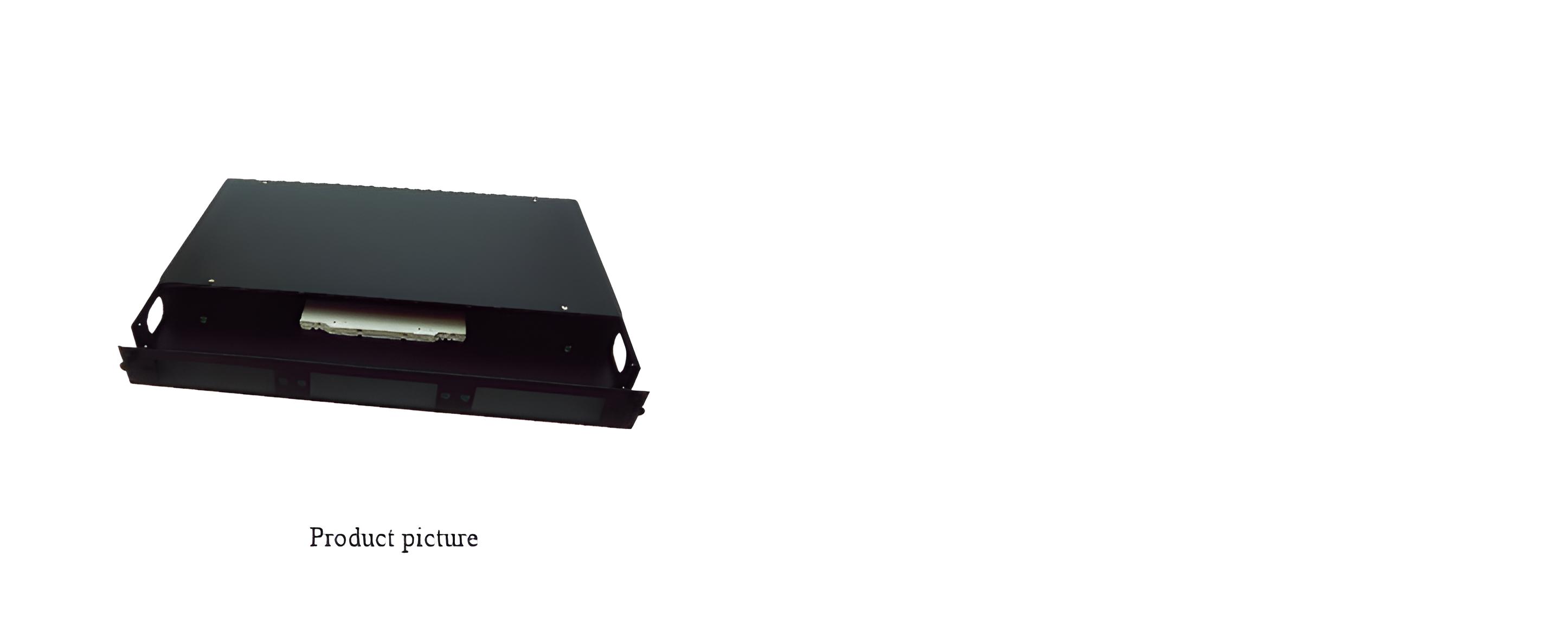

Fiber Optical Patch Panel(1U) FPD01-A



Fiber   Optical   Patch   Panel(1U)

        This fiber patch panel fits for ST or SC adapter( dua port) , it has the function of splicing, distribution, administration, protection and storage for fiber cables. With our high quality materials and elegant design, it makes our products extra valuable to buyers.
To effectively manage optical fiber terminations and splices, We provide a termination solution for LAN applications requiring fully enclosed and lockable wall mount enclosures. These units are equipped with cable management reels and cable routing accessories to limit bend radius and add strain relief control.

  • It fits for 19 inch rack mount for SC adapter ( dual port ).
  • The drawer is the holding board for splicing; the position can be adjusted according to the holes on the board.
  • Aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; flexible and convenient usage.
  • The cover can be opened and components put in easily.
  • All the internal and outer cables can enter the panel via fixed fittings so that the pigtails can work there strongly.
  • With wide working space, easy to withdraw the fibers when testing and distributing.

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

FPD01-*

Fiber optical patch panel (1U)

Black or gray

1PC

5PCS

---

---

FPD11-6-*

six-port ST adapter panel

Black or gray

20PC

200PCS

---

---

FPD22-6-*

six-port SC adapter panel

Black or gray

20PC

200PCS

---

---

FPD22-8-*

eight-port SC adapter panel

Black or gray

20PC

200PCS

---

---

FPD55-8-*

eight-port lC adapter panel

Black or gray

20PC

200PCS

---

---

FPD00-*

blank panel

Black or gray

20PC

200PCS

---

---
