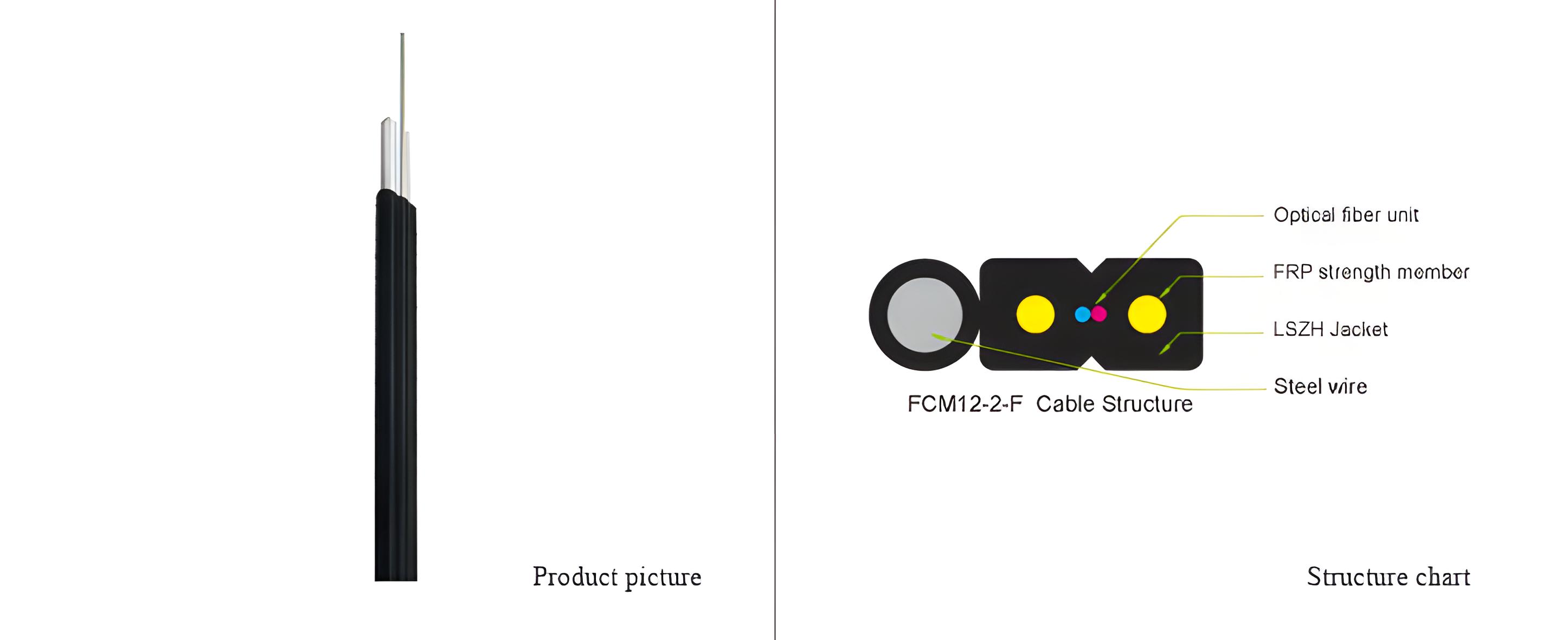

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
-
Special low-bend-sensitivity fiber provides high bandwidth and excellent and excellent communication transmission property.
-
Two paeallel FRP stnength memberssnsure good perfor crush resistance to protetmthe fiber.
-
Simple Structure, light weight and high practicability.
-
Novel flute desing. easily strip and splice simplify the installation and maintenance.
-
Low smoke, zero halogen and flam retardant sheath.
|
Part number |
Description |
Standard Color |
|
FCS12-2-F-LSZH |
Self-Supporting Bow-type drop Cable,single mode,duplex |
Black |
