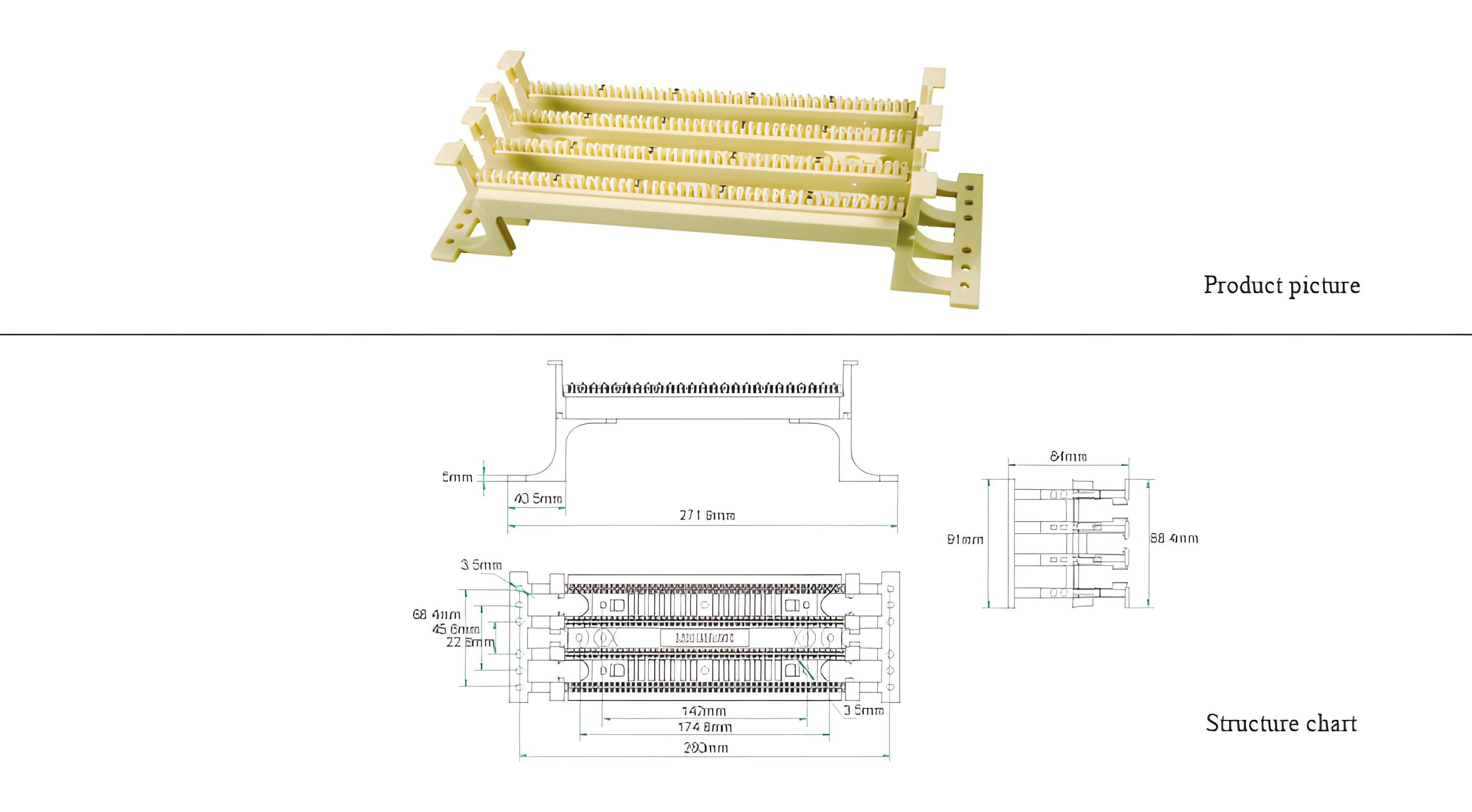

110 Wring Blocks WB100-A3Y



110 Wring Blocks

    Wall-mount  110  wiring  blocks  create  compact,  adaptable  110 termination field for voice and data by mounting 110 wiring bases to the wall or a backboard. Bases come in 100 pair densities. The 100-pair bases may be ordered with or without standoff legs which provide more room behind the base for cable.



  • Type : 100 pairs rack mount 110 wiring block Available with legs or without legs to the wiring base.
  • Easy to adjust , easy to embed wires in Wiring  blocks  are  designed  to  support  voice  and  high-speed  data application.
  • Offering a reliable and economical high -density system.
  • The terminal blocks accommodate 22-26 AWG with a insulation diameter of 0.4-0.64 mm.
  • IDC contact material : phosphor bronze with tin plating over nickel Available with T568 A .T568 B wiring pattern.

Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

WB0100-A3Y

100 pair wiring block with legs

Beige

1PCS

100PCS

L 54cm×W 49cm×H 22cm

5.70KG
