This insert works great to add a Telecommunication connection into any room of the house office, it features dual color-coded wiring labels with both T568A and T568B wiring pattern, a rear termination field for easy termination of a jack while installed in a wall plate,surface mount boxes, and blank patch panels for a wide variety of Applications.
- Available in Cat5E, T568A/B wiring, meet or exceed TIA/EIA VOICErequirements
- Housing : high temperature thermoplastic
- Compact jack design,6 positions and 6 conductors
- Contact : phosphor bronze , phosphor bronze with 6 to 50μ"gold plate
- Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
- Easy to be terminated, low attenuation loss and high return loss
- High reliability and superior performance
- Available in different colors

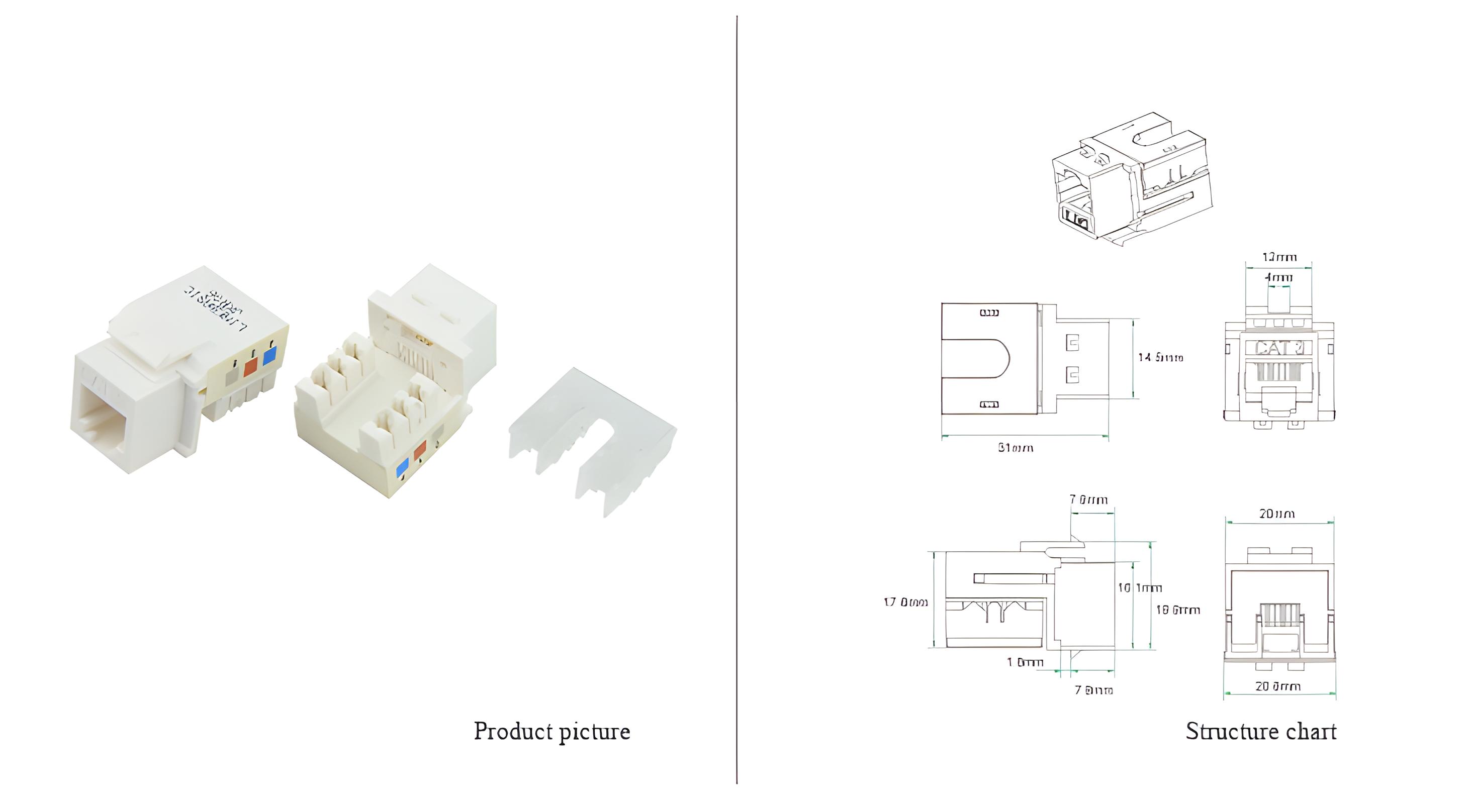

CONSTRUCTION
| Description | Parameter |
| Contact resistance(max) | 100mΩ |
| Insulation resistance（min） | 500MΩ |
| Return loss（dB） | 5.8dB |
| Next（dB） | 4.7dB |
| Ps next(dB) | 5.5dB |
|
Part number |
Description |
standard color |
Inner box |
Carton |
Carton measurement |
Carton weight |
|
JKR06-UC3 |
Communication keystone jacks |
White |
25PCS |
250PCS |
L 53.5cm×W 31.3cm×H 23.4cm |
4.00KG |
