As part of BEITENUO Cat6 UTP solution, Cat6 UTP Keystone jacks’ performance exceeds all requirements for Cat6 components,including NEXT, FEXT, attenuation, and return loss; guarantees 350MHZ broadband transmission, long-term reliability and stability;suitable for connection between workspace and Equipment room.
- Exquisite and compact appearance.
- Unique design of balance circuit board and line pair decrease cross talk and increase allowance.
- Whole zinc-alloy shielding coat comply with Industry code of conduct.
- Available in both T568A/B wiring. Wire map are printed clearly on jacks.
- 350MHZ available bandwidth provides more allowance than Cat6.
- Backward compatibility for Cat6, cat5E and Cat5.
- Compact jack design,8 positions and 8 conductors
- Contact : phosphor bronze , phosphor bronze with 6 to 50μ"gold plate
- Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
- Easy to be terminated, low attenuation loss and high return loss
- High reliability and superior performance
- Available in different colors

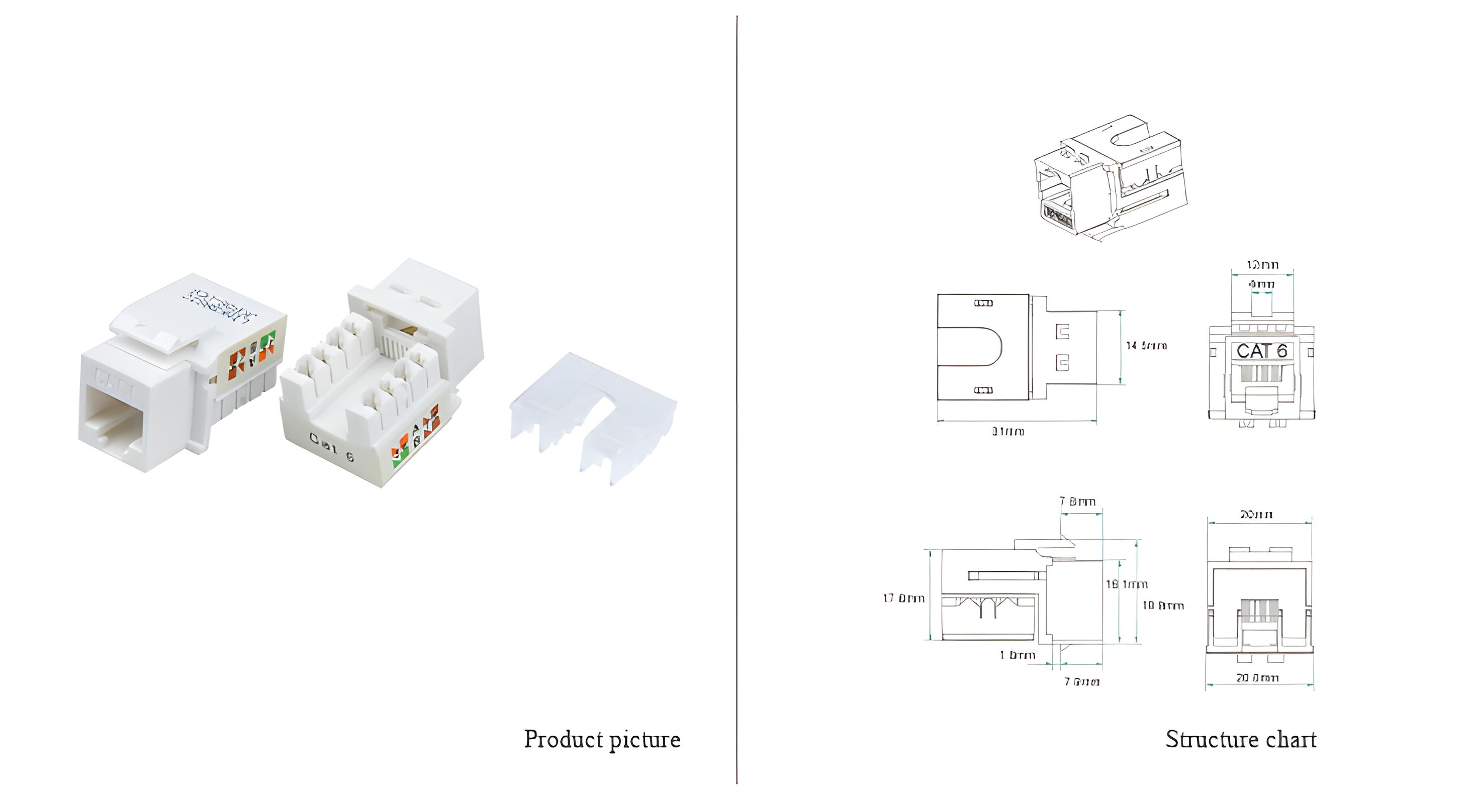

CONSTRUCTION
| Description | Parameter |
| Contact resistance(max) | 100mΩ |
| Insulation resistance（min） | 500MΩ |
| Return loss（dB） | 5.8dB |
| Next（dB） | 4.7dB |
| Ps next(dB) | 5.5dB |
|
Part number |
Description |
standard color |
Inner box |
Carton |
Carton measurement |
Carton weight |
|
JKA09-UC6 |
Cat6 unshielded keystone jacks (90 degree) |
White |
25PCS |
250PCS |
L 53.5cm×W 31.3cm×H 23.4cm |
4.20KG |
|
JKE11-UC6 |
Cat6 unshielded through coupler |
Beige |
25PCS |
250PCS |
L 53.5cm×W 31.3cm×H 23.4cm |
3.50KG |
