Cat 6 FTP Keystone Jack JKB06-SC6



Cat 6 FTP Keystone Jack

       The new style Jack provides Category 6 system performance and user-friendly installation features. A shielded is available to maximum protection from EMI/RFI interference, the compact size provides high-density connectivity in the work area and telecommunications room.

  • Available in Cat6, T568A/B wiring, meet or exceed TIA/EIA Cat6 requirements
  • Shielding protects against EMI/RFI interference
  • Housing : high temperature thermoplastic
  • Compact jack design,8 positions and 8 conductors
  • Contact : phosphor bronze , phosphor bronze with 6 to 50μ"gold plate
  • Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
  • Easy to be terminated, low attenuation loss and high return loss
  • High reliability and superior performance
  • Available in different colors

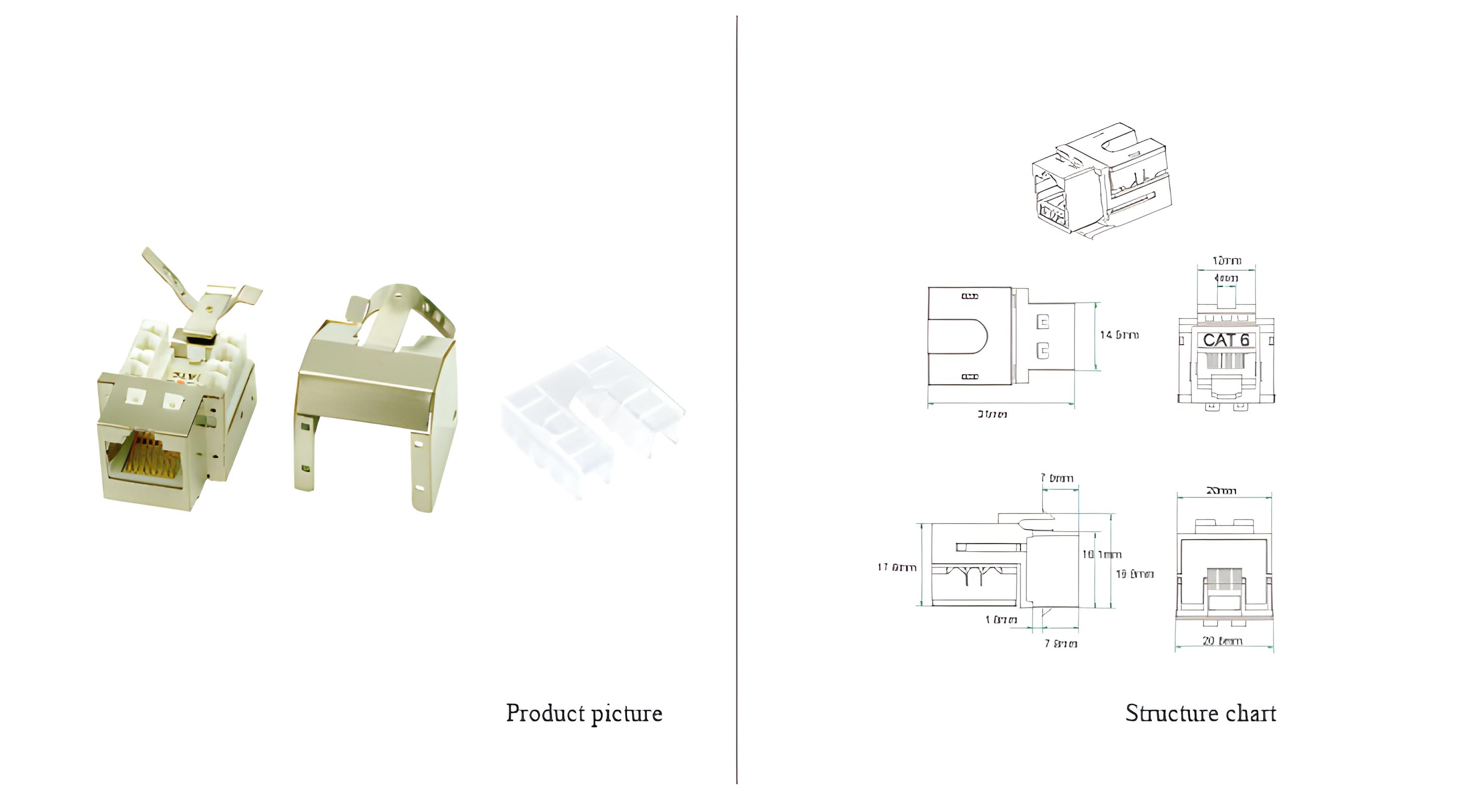

CONSTRUCTION

Description Parameter
Contact resistance(max) 100mΩ
Insulation resistance(min) 500MΩ
Return loss(dB) 5.8dB
Next(dB) 4.7dB
Ps next(dB) 5.5dB



Part number

Description

standard color

Inner box

Carton

Carton measurement

Carton weight

JKB06-SC6

Cat6 shielded keystone jacks (90 degree)

Silver

20PCS

200PCS

L 53.5cm×W 31.3cm×H 23.4cm

5.20KG
