The new style Jack provides Category 6A system performance anduser-friendly installation features. A shielded is available to maximum protection from EMI/RFI interference, the compact size provides high-density connectivity in the work area and telecommunications room.
-
Available in Cat6A, T568A/B wiring, meet or exceed TIA/EIA Cat6A
requirements - Shielding protects against EMI/RFI interference
- Housing : high temperature thermoplastic
- Compact jack design,8 positions and 8 conductors
- Contact : phosphor bronze , phosphor bronze with 6 to 50μ"gold plate
- Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
- Easy to be terminated, low attenuation loss and high return loss
- High reliability and superior performance
- Available in different colors

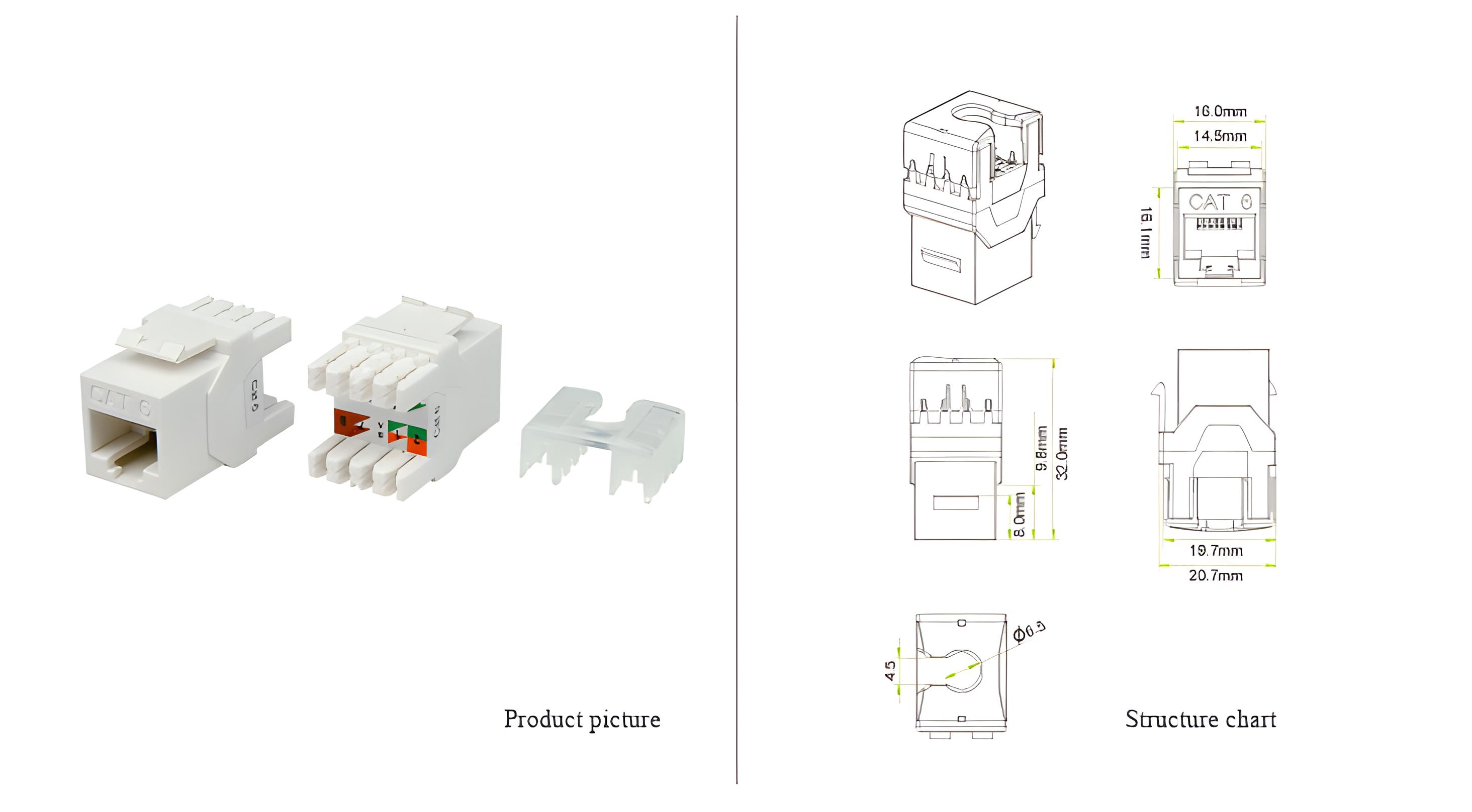

CONSTRUCTION
| Description | Parameter |
| Contact resistance(max) | 100mΩ |
| Insulation resistance（min） | 500MΩ |
| Return loss（dB） | 5.8dB |
| Next（dB） | 4.7dB |
| Ps next(dB) | 5.5dB |
|
Part number |
Description |
standard color |
Inner box |
Carton |
Carton measurement |
Carton weight |
|
JKA09-UC6A |
Cat6A unshielded keystone jacks (180 degree) |
White |
25PCS |
250PCS |
L 53.5cm×W 31.3cm×H 23.4cm |
3.80KG |
